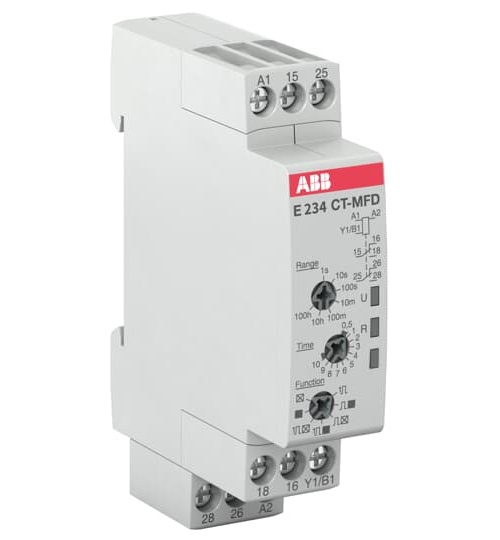

ABB 1SVR500020R1100 CT-D Electronic Multi-Function Timing Relay, 0.05 s to 100 hr Setting, 2CO 2 Form C SPDT Contact
Sku #01677965766
MFG #1SVR500020R1100
Attributes
| Type: | Electronic Multi-Function |
| Operation Mode: | On-Delay/Off-Delay/Impulse On/Impulse Off |
| Time Setting: | 0.05 s to 100 hr |
| Series: | CT-D |
| Contact Form: | 2CO 2 Form C SPDT |
| Coil Voltage: | 12 to 240 V AC/DC |
- With their MDRC profile and a width of only 17.5 mm, the CT-D range timers are ideally suited for installation in distribution panels as well as for industrial applications where compact dimensions are required
- Multi-function timer with 7 timing functions ON-delay, OFF-delay with auxiliary voltage impulse-ON, impulse-OFF with auxiliary voltage flasher starting with on, flasher starting with off, pulse former
- 7 time ranges (0.05 sec to 100 hr) in one device
- Control input voltage related triggering, polarized, capable of switching a parallel load
- Light-gray enclosure in RAL 7035
- 1 CO (SPDT) contact (250 VAC/5 A) output
- 2 LEDs for the indication of operational states
- Screw terminal connection
- ON-delay OFF-delay/impulse-on/impulse-off/flasher starting with on/flasher starting with off pulse former
- For all domestic installation and distribution panels and the wide input range allows use in applications worldwide
- RoHS Compliant|UL 508|CAN/CSA C22.2 No. 14|cUL Listed|CCC|RMRS|RCM|CB|EAC|CE Certified
