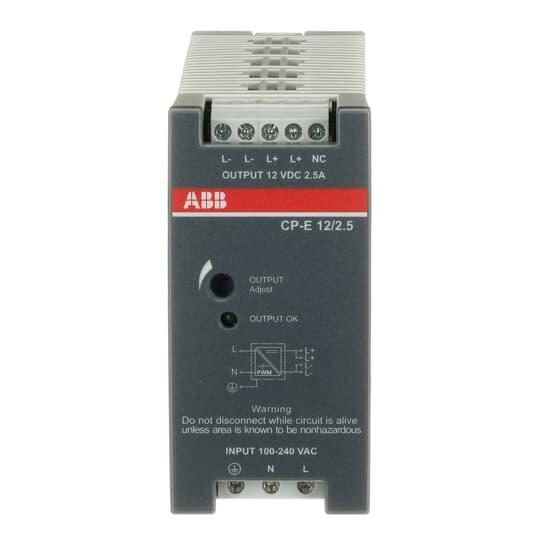

ABB 1SVR427032R1000 CP-E Switch Mode Power Supply, 85 to 264 V AC/90 to 375 V DC Input, 12 VDC Output, 30 W Power Rating, 2.5 A, DIN Rail Mount
Sku #01677965690
MFG #1SVR427032R1000
Attributes
| Type: | Switch Mode |
| Input Voltage: | 85 to 264 V AC/90 to 375 V DC |
| Power Rating: | 30 W |
| Series: | CP-E |
| Output Voltage: | 12 V DC |
| Amperage Rating: | 2.5 A |
- Used in high fluctuating networks and battery powered plants
- IEC/EN 60950-1|IEC/EN 61000-6-2|IEC/EN 61000-6-3|UL 508/60950/1310|CAN/CSA C22.2 No 107.1 1|CSA C22.2 No. 223|ANSI/ISA-12.12|CSA C22.2 No. 213|CSA C22.2 No.60950|EAC Approved|CCC Certified|CE Certified|RCM Certified|IEC/EN 60950-1/61000-6-2/61000-6-3|UL 508/60950/1310|cUL Listed|CAN/CSA C22.2 No. 213|223|107.1|60950|UL Recognized|CE Certified
- Integrated input fuse
- Power reserve up to 50%
- Low power dissipation and low heating
- LEDs for status indication
- 100% duty time
- Output voltage adjustable via front face rotary potentiometer output adjust
- 560 mA at 115 VAC 330 mA at 230 VAC input current
- Free convection cooling (no forced cooling with ventilators)
- Open circuit, overload and short circuit stable
- For applications that require cost effective 12 VDC at 2.5 A power supply
- Typical efficiency of 84%
- Ambient temperature range during operation -40 to 70 deg C
- 35.9 W typical power consumption
