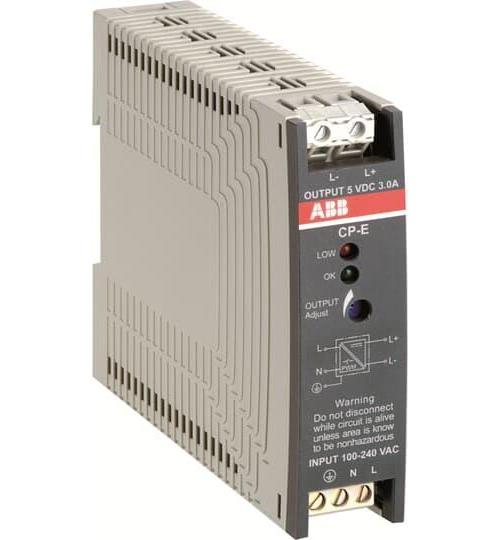

ABB 1SVR427033R3000 Type CP-E 1-Phase Switch Mode Power Supply, 100 to 240 V AC, 120 to 375 V DC Input, 5 VDC Output, 15 W Power Rating, 3 A, DIN Rail Mount
Sku #01677965689
MFG #1SVR427033R3000
Attributes
| Type: | Type CP-E 1-Phase |
| Output Voltage: | 5 V DC |
| Amperage Rating: | 3 A |
| Input Voltage: | 100 to 240 V AC, 120 to 375 V DC |
| Power Rating: | 15 W |
| Frequency Rating: | 47 to 63 Hz |
- Integrated input fuse
- Low power dissipation and low heating
- LEDs for status indication
- 100 to 240 VAC (85 to 264 VAC, 90 to 375 VDC) wide range input
- Output voltage adjustable via front face rotary potentiometer "OUTPUT Adjust
- Free convection cooling (no forced cooling with ventilators)
- Open circuit, overload and short circuit stable
- Ambient temperature range during operation -40 to 70 deg C
- Typical efficiency of 75%
- ANSI/ISA-12.12|BAA Compliant|CCC Certified|CE Certified|CAN/CSA C22.2 No.107.1|CAN/CSA C22.2 No.213|CAN/CSA C22.2 No.60950|CAN/CSA C22.2 No.223|EAC Certified|IEC/EN 60950-1|IEC/EN 61000-6-2|IEC/EN 61000-6-3|UL 508|UL 60950|UL 1310|CAN/CSA C22.2 No. 107.1|CAN/CSA C22.2 No. 213|CAN/CSA C22.2 No. 223|CAN/CSA C22.2 No. 60950|EN 50581|IEC/EN 60950-1|IEC/EN 61000-6-2|IEC/EN 61000-6-3|UL 1310|UL 508|UL 60950|CCC Certified|cUL 508 File No. E174460|cUL Recognised|EAC Certified|CE Certified
- For applications that require cost effective 5 VDC at 3 A power supply
