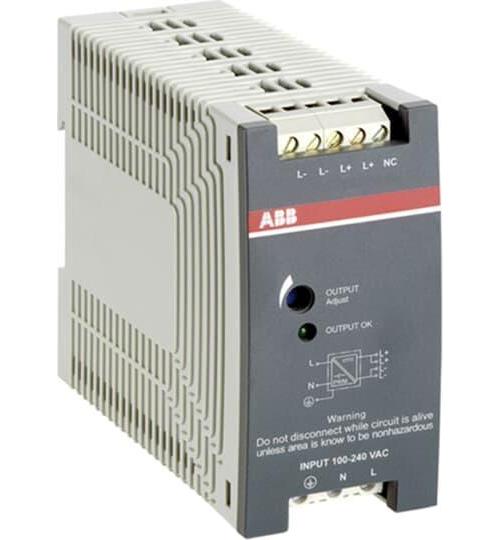

ABB 1SVR427032R0000 CP-E Switch Mode Power Supply, 85 to 264 V AC/90 to 375 V DC Input, 24 VDC Output, 60 W Power Rating, 2.5 A, DIN Rail Mount
Sku #01677965688
MFG #1SVR427032R0000
Attributes
| Type: | Switch Mode |
| Input Voltage: | 85 to 264 V AC/90 to 375 V DC |
| Power Rating: | 60 W |
| Series: | CP-E |
| Output Voltage: | 24 V DC |
| Amperage Rating: | 2.5 A |
- For applications that require cost effective 24 VDC at 2.5 A power supply
- Integrated input fuse
- Signaling output DC OK (transistor) for output voltage OK
- Power reserve up to 50%
- Low power dissipation and low heating
- Typical efficiency of 89%
- 100% duty time
- For applications that require cost effective 24 VDC at 2.5 A power supply
- Free convection cooling (no forced cooling with ventilators)
- Open circuit, overload and short circuit stable
- LED's for status indication
- 69.2 W typical power consumption
- Output voltage adjustable via front face rotary potentiometer output adjust
- Ambient temperature range during operation -40 to 70 deg C
- 1060 mA at 115 VAC 590 mA at 230 VAC input current
- IEC/EN 60950-1/61000-6-2/61000-6-3|UL 508/60950/1310|cUL Listed|CAN/CSA C22.2 No. 213|223|107.1|60950|UL Recognized|CE Certified|IEC/EN 60950-1/61000-6-2/61000-6-3|UL 508/1310|CAN/CSA C22.2 No 107.1/C22.2 No. 223/C22.2 No. 213/C22.2 No. 60950|ANSI/ISA-12.12|EAC Certified|CCC/CE Marked|RCM Certified
