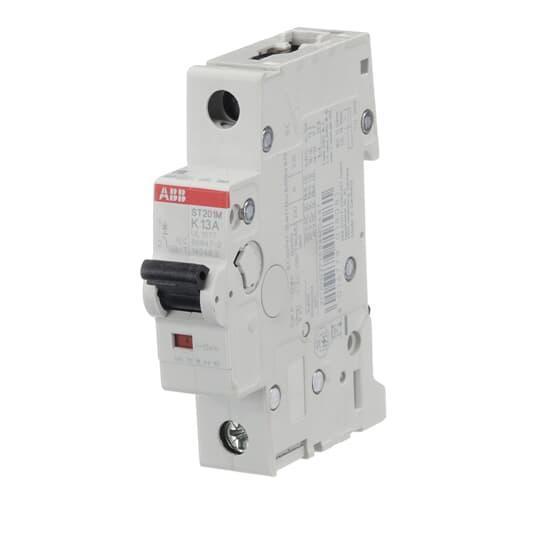

ABB ST201M-K13 ST200M High Performance Miniature Circuit Breaker With Auxiliary Contact, Signal Contact, Shunt Trip, 230 V AC, 13 A, 10 kA at 277 V AC/60 VDC Interrupt, 1 Pole, Thermal Magnetic Trip
Sku #01677901808
MFG #ST201M-K13
Attributes
| Type: | High Performance |
| Voltage Rating: | 230 V AC |
| Frequency Rating: | 50/60 Hz |
| Series: | ST200M |
| Amperage Rating: | 13 A |
| Interrupt Rating: | 10 kA at 277 VAC/60 VDC |
- High performance MCB with interrupt rating up to 10 kA
- High calibration temperature of 40 deg C for reduced derating in ICP applications
- Short circuit current rating (SC) U2 enables continuous high level short circuit protection
- Laser printing provides clear product information on device
- Clear contact position indication in red/green ("real CPI")
- Unique, patented twin terminal for wiring up to 35 sq-mm with captive screws
- Robust thermoplastic housing material for better protection against external influences
- CCC Certified|CSA 22.2 File No. 235|EAC Approved|IEC/EN 60947-2|RoHS EU Directive 2011/65/EU|UL 1077|VDE Approved
