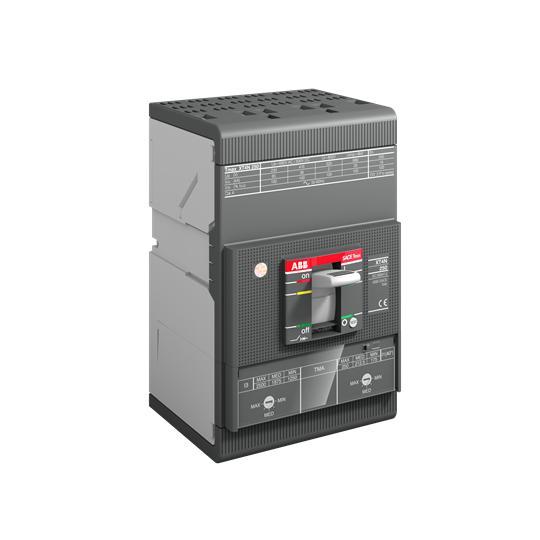

ABB XT4HU3200BFF000XXX Tmax XT Low Voltage Molded Case Circuit Breaker, 600/690 VAC, 200 A, 25 kA Interrupt, 3 Poles, Electronic Trip
Sku #01564479214
MFG #XT4HU3200BFF000XXX
Attributes
| Type: | Low Voltage |
| Voltage Rating: | 600/690 V AC |
| Frequency Rating: | 50/60 Hz |
| Series: | Tmax XT |
| Amperage Rating: | 200 A |
| Interrupt Rating: | 25 kA |
- Frame XT4 to 250 A, 600 V (UL)/250 A, 690 V (IEC) thermal magnetic and electronic protection
- Specific electronic trip units for energy metering, motor protection and generator protection in addition to a Modbus communication module for integration in a supervision system
- F front terminals, no lugs installed on line and load side termination (top/bottom)
- Wide range of keylocks and padlocking options, plug-in and withdrawable versions to speed up maintenance operations and improved diagnostic to have ready to use information about breakers status
- A dedicated range of accessories and a renewed solution for electronic trip units to adapt Tmax XT to different applications scenarios installation flexibility
- XTraordinary limiting characteristics allow savings in copper and footprint in switchboard, high selectivity values and very compact motor protection solutions high breaking capacity
- Feature high specific let-through current peak and energy limiting characteristics that allow the circuits and equipment on the load side to be sized in optimum way
- For all distribution levels from the main low voltage switchboard to the sub-switchboards in the installation
- RoHs, CSA, cUL, CE, GOST
