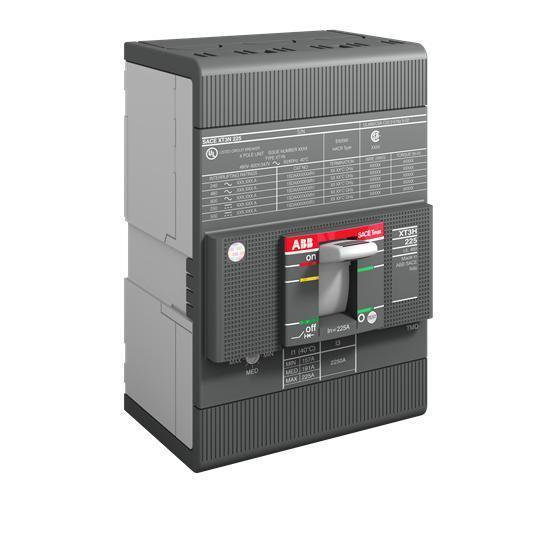

ABB XT3NU3150AFF000XXX Tmax XT Low Voltage Molded Case Circuit Breaker, 600Y/347/690 VAC, 150 A, 10 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Sku #01564479092
MFG #XT3NU3150AFF000XXX
Attributes
| Type: | Low Voltage |
| Voltage Rating: | 600Y/347/690 V AC |
| Frequency Rating: | 50/60 Hz |
| Series: | Tmax XT |
| Amperage Rating: | 150 A |
| Interrupt Rating: | 10 kA |
- For all distribution levels from the main low voltage switchboard to the sub-switchboards in the installation
- Frame XT3 to 225 A, 600Y/347 V (UL) /250 A, 690 V (IEC) thermal magnetic protection
- Specific electronic trip units for energy metering, motor protection and generator protection in addition to a Modbus communication module for integration in a supervision system
- F front terminals, no lugs installed on line and load side termination (top/bottom)
- Wide range of keylocks and padlocking options, plug-in and withdrawable versions to speed up maintenance operations and improved diagnostic to have ready to use information about breakers status
- A dedicated range of accessories and a renewed solution for electronic trip units to adapt Tmax XT to different applications scenarios installation flexibility
- XTraordinary limiting characteristics allow savings in copper and footprint in switchboard, high selectivity values and very compact motor protection solutions high breaking capacity
- Feature high specific let-through current peak and energy limiting characteristics that allow the circuits and equipment on the load side to be sized in optimum way
- RoHs, CSA, cUL, CE, GOST
