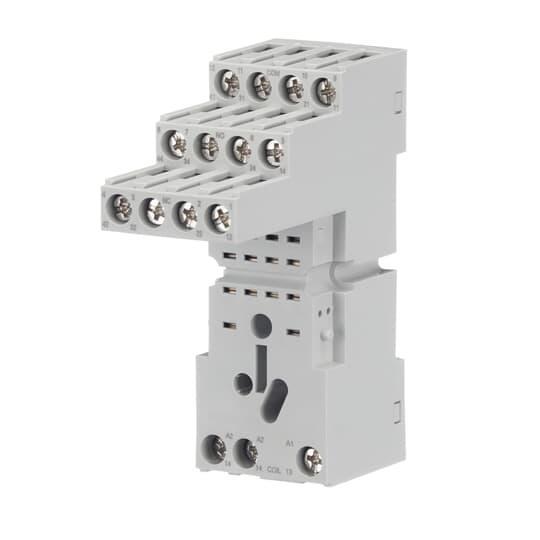

ABB 1SVR405651R3100 CR-M Logical Socket, 250 V AC/DC, 7 A, For Use With 2CO or 4CO SPDT Plug-In Control CR-M Relay, 4 Poles
Sku #01361452868
MFG #1SVR405651R3100
Attributes
| Series: | CR-M |
| Amperage Rating: | 7 A |
| Temperature Rating: | -40 to 70 deg C |
| Voltage Rating: | 250 V AC/DC |
| Number of Poles: | 4 |
| Suitable For Use With: | 2CO or 4CO SPDT Plug-In Control CR-M Relay |
- RoHS 2011/65/EU|IEC/EN 61984|CSA Certified|cURus Listed|CE Certified|EAC Certified|EU Directive 2011/65/EU|UL Listed
- For use with 2/4 4PDT plugin control relays
- Position of connection terminals: coil connection (A1-A2) on lower side of the socket, all contact connections (common contacts, n/o and n/c contacts) on the upper side of the socket
