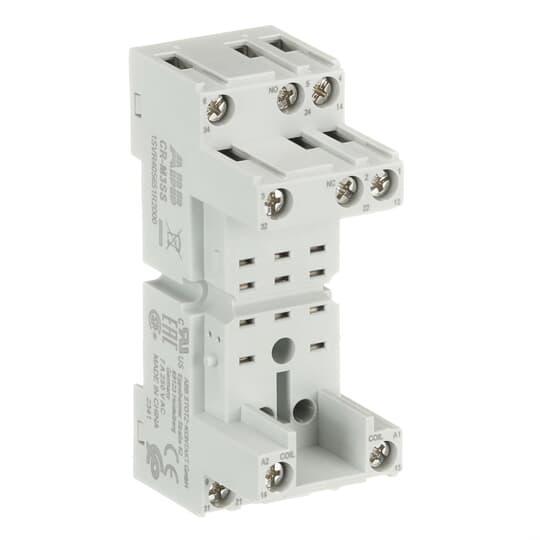

ABB 1SVR405651R2000 CR-M Standard Socket, 250 V AC, 7 A, For Use With 3CO SPDT Plug-In CR-M Relay, 3 Poles
Sku #01361452865
MFG #1SVR405651R2000
Attributes
| Type: | Standard |
| Voltage Rating: | 250 V AC |
| Number of Poles: | 3 |
| Series: | CR-M |
| Amperage Rating: | 7 A |
| Temperature Rating: | -40 to 70 deg C |
- IEC/EN 61984|BAA Compliant|cURus Listed|EAC Certified|EU Directive 2011/65/EU
- Position of connection terminals: coil connection (A1-A2) on lower side of the socket, contact connections (n/o and n/c contacts) on the lower and upper side of the socket
