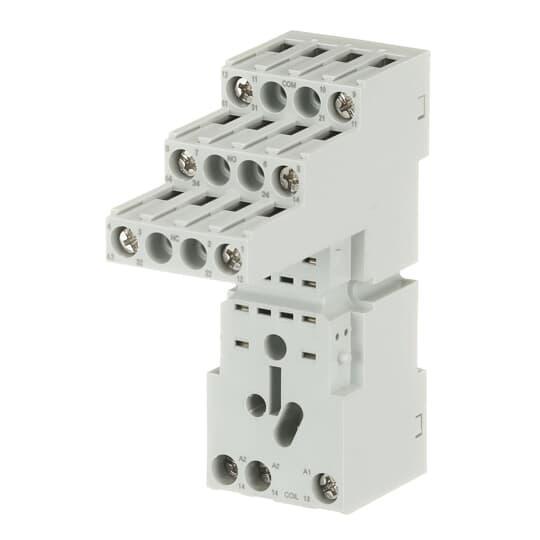

ABB 1SVR405651R1100 CR-M Logical Socket, 250 VAC/VDC, 7 A, For Use With 2CO DPDT Plug-In Control CR-M Relay, 2 Poles
Sku #01361452862
MFG #1SVR405651R1100
Attributes
| Series: | CR-M |
| Amperage Rating: | 7 A |
| Temperature Rating: | -40 to 70 deg C |
| Voltage Rating: | 250 V AC/DC |
| Number of Poles: | 2 |
| Suitable For Use With: | 2CO DPDT Plug-In Control CR-M Relay |
- UL Listed|CSA Certified|EAC Approved|IEC/EN 61984|RoHS 2011/65/EU|UL Listed|CSA Certified|EAC Approved|IEC/EN 61984
- Position of connection terminals: coil connection (A1-A2) on lower side of the socket, all contact connections (common contacts, n/o and n/c contacts) on the upper side of the socket
