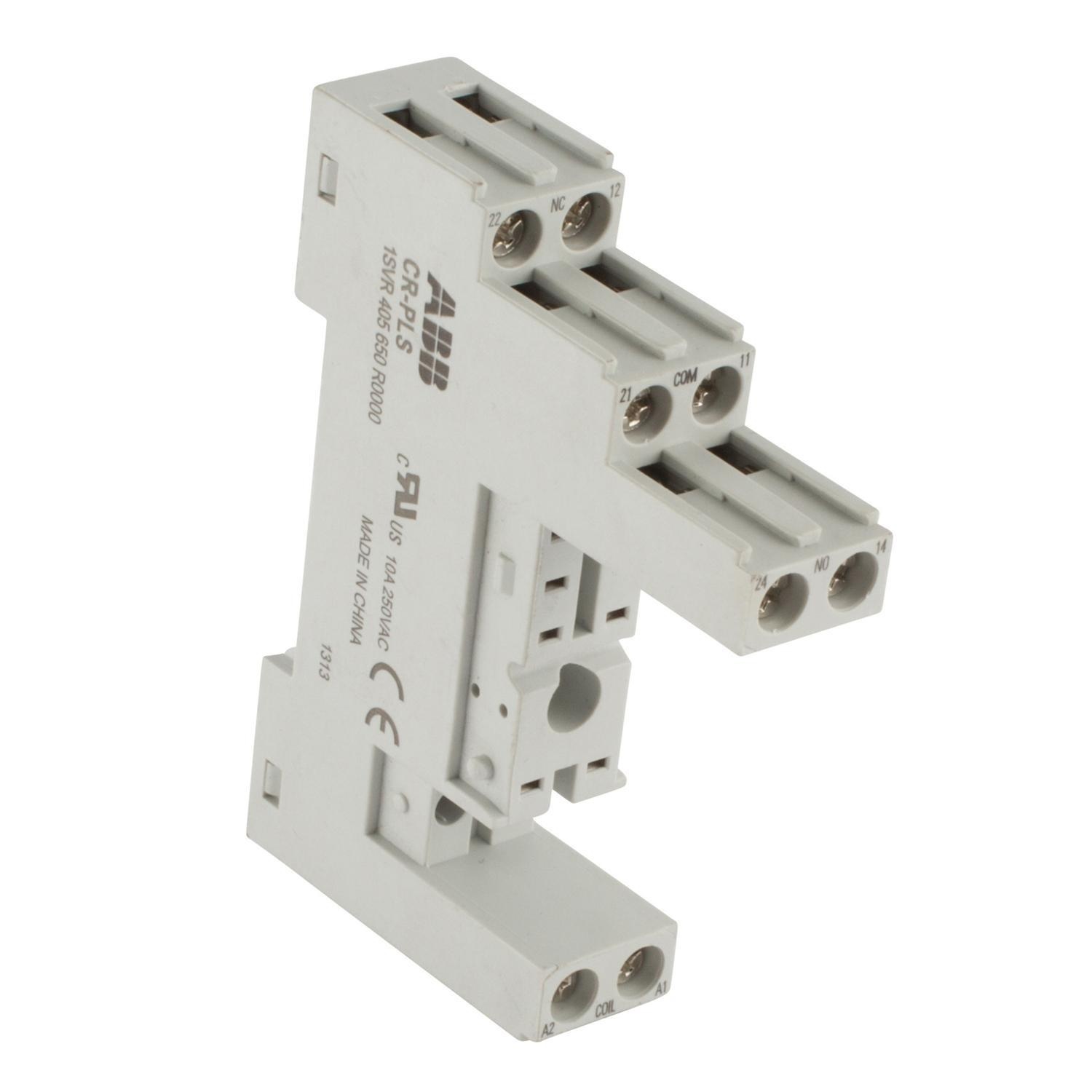

ABB 1SVR405650R0000 CR-P Logical Socket With Protective Separation, 250 V AC/DC, 10 A, For Use With 1CO or 2CO Plug-In CR-P Relay, 2 Poles
Sku #01361452856
MFG #1SVR405650R0000
Attributes
| Series: | CR-P |
| Amperage Rating: | 10 A |
| Temperature Rating: | -40 to 70 deg C |
| Voltage Rating: | 250 V AC/DC |
| Number of Poles: | 2 |
| Suitable For Use With: | 1CO or 2CO Plug-In CR-P Relay |
- Position of connection terminals: coil connection (A1-A2) on lower side of the socket, all contact connections (common contacts, n/o and n/c contacts) on the upper side of the socket
- For mounting control relay and a logic module
- IEC/EN 61984
