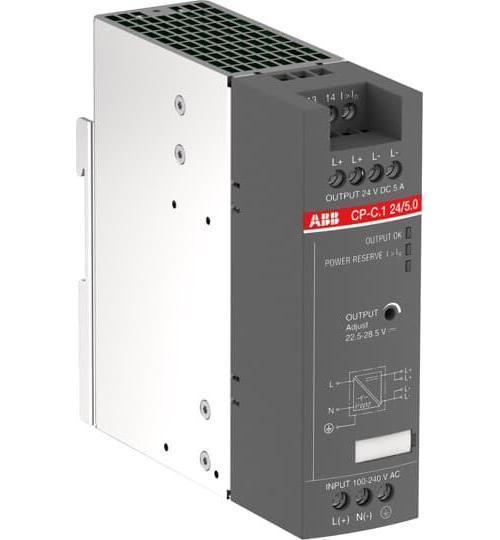

ABB 1SVR360563R1001 1SVR Switch Mode Power Supply, 85 to 264 V AC, 90 to 300 V DC Input, 24 VDC Output, 120 W Power Rating, 5 A, DIN Rail Mounting
Sku #01361450381
MFG #1SVR360563R1001
Attributes
| Type: | Switch Mode |
| Input Voltage: | 85 to 264 V AC, 90 to 300 V DC |
| Power Rating: | 120 W |
| Series: | 1SVR |
| Output Voltage: | 24 V DC |
| Amperage Rating: | 5 A |
- The CP-C.1 24/5.0 is a power supply from the CP-C.1 range
- The primary switch mode power supply offers a wide range input of 85-264 V AC and 90-300 V DC, rated input voltage is 110-240 V AC
- The rated output power is 120 W, rated output current is 5 A at an output voltage of 24 V DC
- The output voltage is adjustable within a range of 22.5 to 28.5 V DC
- The power supply provides a U/I output characteristic with a power reserve of up to 50 % and allows parallel operation to increase capacity and to enable redundancy
- CAN/CSA C22.2 No.107.1|IEC/EN 63000|IEC/EN 61000-6-2|IEC/EN 61000-6-3|IEC/EN 61204|UL 508|IEC/EN 61010-1|UL 61010-1|UL 61010-2-201|PROP65
