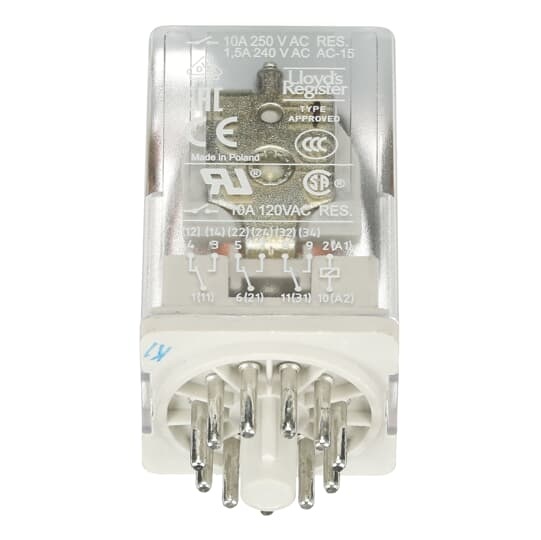

ABB 1SVR405622R2000 CR-U Pluggable Universal Interface Relay, 10 A, 3CO 3 Form C SPDT Contact, 120 V AC V Coil
Sku #01361449859
MFG #1SVR405622R2000
Attributes
| Type: | Pluggable Universal |
| Amperage Rating: | 10 A |
| Frequency Rating: | 50/60 Hz |
| Series: | CR-U |
| Power Rating: | 2500 W |
| Coil Voltage: | 120 V AC |
- For link the electronic controlling PLC, PC or field bus system to the sensor/actuator level
- Integrated test button for manual actuation and locking of the output contacts (blue = DC, orange = AC) that can be removed if necessary
- Cadmium free contact material
- 38 mm width on socket
- Reverse polarity prediction/free wheeling diode
- RC elements
- Overvoltage prediction
- Multi-function time module
- Amplification of weak control signals, electrical isolation of control and load circuits, and signal multiplying
- Switching of AC or DC loads with different resistive, inductive and capacitive parts, switching voltages from a few mV up to 250 V
- Switching currents from a few mA up to 16 A
- Overload-proof against short-time variations like current or voltage peaks
- Without LED
- CCC_2012010303554029 CCC Certificate|CSA_1587291 CSA Certificate|EAC_RU_C-PL.ME77.B.01873 EAC Certificate|LR_05_20002_E3 LR Certificate|RMRS_12.04008.250 RMRS Certificate|1SVD981001-4400 RoHS Information
