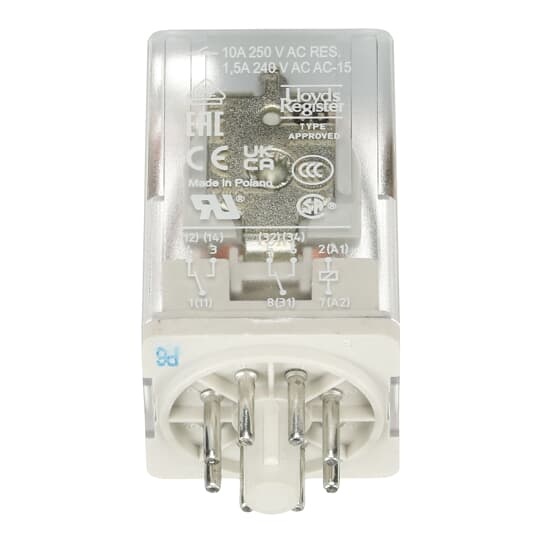

ABB 1SVR405621R3100 CR-U Pluggable Universal Interface Relay, 10 A, 2CO 2 Form C SPDT Contact, 230 V AC V Coil
Sku #01361449842
MFG #1SVR405621R3100
Attributes
| Type: | Pluggable Universal |
| Amperage Rating: | 10 A |
| Coil Voltage: | 230 V AC |
| Series: | CR-U |
| Power Rating: | 2500 VA |
| Contact Form: | 2CO 2 Form C SPDT |
- Switching of AC or DC loads with different resistive, inductive and capacitive parts, switching voltages from a few mV up to 250 V
- Cadmium-free contact material
- Reverse polarity prediction/free wheeling diode
- RC elements
- The relay has an integrated orange test button for manual actuation
- Multi-function time module
- Pluggable universal interface relay
- 38 mm width on socket
- Overvoltage prediction
- Relay with built-in LED
- For use to link the electronic controlling PLC, PC or field bus system to the sensor/actuator level
- CCC 2017010303949759|CE 1SVD982021-0001|CSA 1587291, LR 05_20002_E3, RMRS 1740019250|UR E244330|VDE 40019116|UL Listed|CCC Certified|CSA File No 1587291|CE Certified|EAC Certified|LR Certified|RMRS Certified|UR File No E244330|VDE File No 40019116
