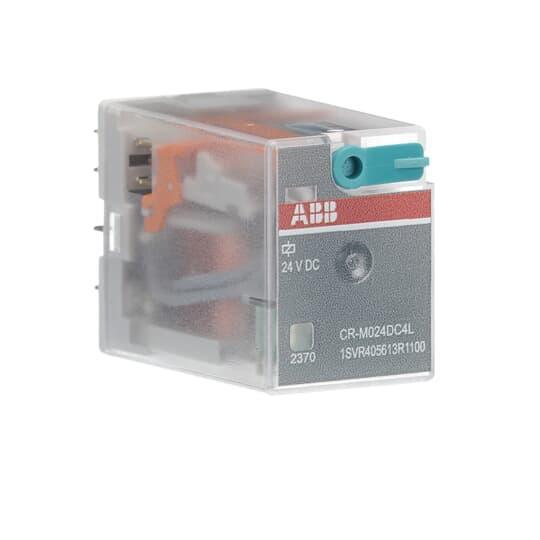

ABB 1SVR405613R1100 CR-M Pluggable Miniature Relay, 6 A, 4CO 4 Form C SPDT Contact, 24 V DC V Coil
Sku #01361449772
MFG #1SVR405613R1100
Attributes
| Type: | Pluggable Miniature |
| Amperage Rating: | 6 A |
| Coil Voltage: | 24 V DC |
| Series: | CR-M |
| Power Rating: | 1500 W |
| Contact Form: | 4CO 4 Form C SPDT |
- Standard miniature relays with mechanical status indication
- Integrated test button for manual actuation and locking of output contacts (DC coil = blue, AC coil = orange) that can be removed if necessary
- Cadmium-free contact material
- Suited for logical and standard sockets
- Interface relays link the electronic controlling, e.g. PLC, PC or filed bus system to the sensor/actuator level
- General purpose relay
- Integrated test button for manual actuation and locking of the output contacts (blue = DC, orange = AC) that can be removed if necessary
- With or without integrated LED
- Logical or standard sockets
- 27 mm width on socket
- Reverse polarity prediction/free wheeling diode
- LED indication
- RC elements
- Overvoltage prediction
- For applications where low current control voltage is used to switch higher current or voltage loads
- CE Certified|CCC Certified|cUR Listed|CSA Certified|EAC Certified|GOST Certified|LR Certified|RMRS Certified|RoHS Compliant|VDE Certified|UR Listed
