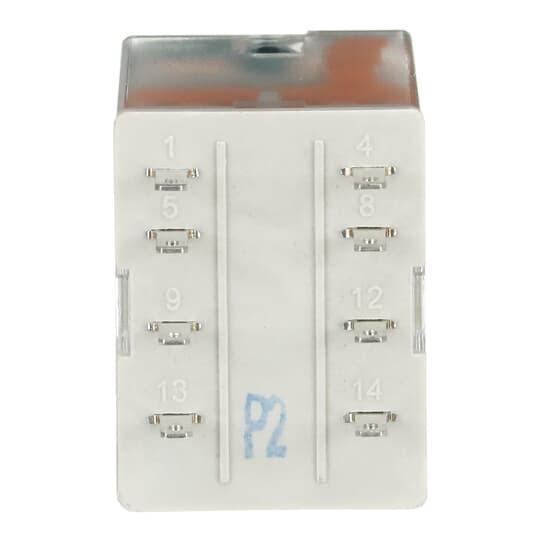

ABB 1SVR405611R4100 CR-M Pluggable Miniature Interface Relay, 12 A, 2CO 2 Form C SPDT Contact, 12 V DC V Coil
Sku #01361449729
MFG #1SVR405611R4100
Attributes
| Type: | Pluggable Miniature |
| Amperage Rating: | 12 A |
| Coil Voltage: | 12 V DC |
| Series: | CR-M |
| Power Rating: | 3000 W |
| Contact Form: | 2CO 2 Form C SPDT |
- Integrated test button for manual actuation and locking of the output contacts (blue = DC, orange = AC) that can be removed if necessary
- Switching of AC or DC loads with different resistive, inductive and capacitive parts, switching voltages from a few mV up to 250 V
- RC elements
- 27 mm width on socket
- Reverse polarity prediction/free wheeling diode
- Amplification of weak control signals, electrical isolation of control and load circuits, and signal multiplying
- Overload-proof against short-time variations like current or voltage peaks
- LED indication
- With or without integrated LED
- Logical or standard sockets
- Overvoltage prediction
- Cadmium free contact material
- For link the electronic controlling PLC, PC or field bus system to the sensor/actuator level
- CCC_2014010303720193 CCC Certificate|CSA_2735700 CSA Certificate|cUR_E244330 cUR Certificate|EAC_RU_C-PL.ME77.B.01873 EAC Certificate|RMRS_12.04008.250 RMRS Certificate|UR_E244330 UR Certificate|VDE_40040327 VDE Certificate|1SVD981001-4400 RoHS Information|UL Listed|cUL/UL Recognized|CSA Certified|CE Certified|EAC Approved
