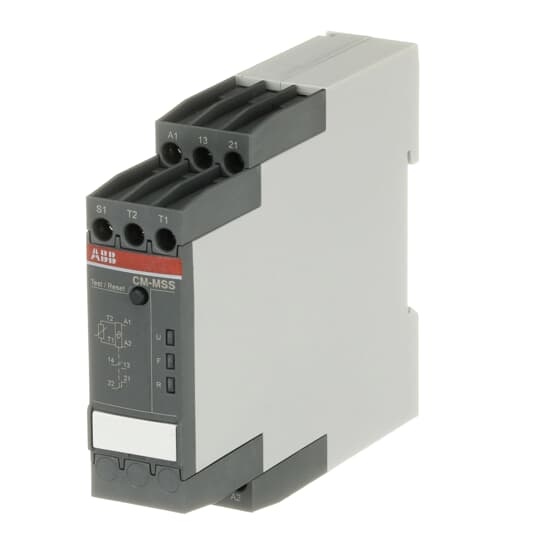

ABB 1SVR730712R1400 Thermistor Motor Protection Relay, 1CO 1 Form C SPDT Contact
Sku #01361449665
MFG #1SVR730712R1400
Attributes
| Power Rating: | 0.55 to 1.5 VA |
| Contact Form: | 1CO 1 Form C SPDT |
| Mounting Type: | DIN Rail/Snap-On |
| Frequency Rating: | 15 to 400 Hz |
| Contact Rating: | 4 A at 250 V |
| Terminal Type: | Screw |
- One sensor circuit
- Short circuit monitoring of the sensor circuit
- Non-volatile fault storage
- Dynamic interrupted wire detection
- Auto, manual or remote reset configurable
- LEDs to distinguish between different failure causes
- Overvoltage protected supply and measuring inputs
- Housing material for highest fire protection classification UL 94 V-0
- Tool-free mounting on DIN rail as well as demounting
- ATEX Directive 94/9/EC|CAN/CSA C22.2 File No. 14|EN 50495/50581|IEC/EN 60079-7/60947-5-1/60947-8|RoHS EU Directive 2011/65/EU|UL 508/94 V-0
