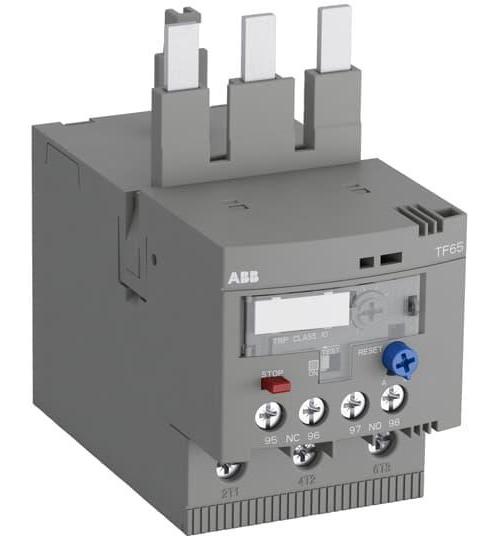

ABB TF65-60 Thermal Overload Relay, 60 A, 1NO-1NC 1 Form A/1 Form B Contact
Sku #01361448296
MFG #TF65-60
Attributes
| Series: | TF65 |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 3 |
| Amperage Rating: | 60 A |
| Contact Form: | 1NO-1NC 1 Form A/1 Form B |
| Mounting Type: | DIN Rail |
- The device has trip class 10 A
- The temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, stop and test function and a trip indication
- The overload relays are connected directly to the block contactors
- Adjustable current setting for overload protection
- Automatic or manual reset selectable
- Suitable for 1 and 3-phase application
- Trip free mechanism
- Status indication
- Stop and test function
- Direct mounting onto block contactors
- Sealable operating elements
- 36 to 47 A setting range
- 6 kV auxiliary, 8 kV main rated impulse withstand voltage
- 690 VAC insulation voltage
- Position 1 to 6 mounting
- 2000 m maximum operating altitude permissible
- 2.1 to 3.6 W power loss
- For motors in the event of overload or phase failure
- IEC/EN 60947-1/60947-4-1/60947-5-1 Certified
