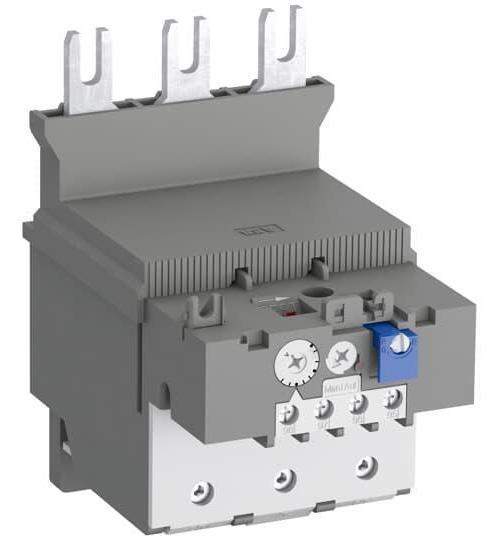

ABB TF140DU-135 Economic Thermal Overload Relay, 100 to 135 A, 1NO-1NC 1 Form A/1 Form B Contact
Sku #01361444683
MFG #TF140DU-135
Attributes
| Type: | Economic |
| Amperage Rating: | 100 to 135 A |
| Contact Form: | 1NO-1NC 1 Form A/1 Form B |
| Series: | TF140DU |
| Frequency Rating: | 50/60 Hz |
| Contact Rating: | 3 A at 120 V AC |
- Overload protection - trip class 10A
- Phase loss sensitivity
- Adjustable current setting for overload protection
- Automatic or manual reset selectable
- Trip-free mechanism
- Status indication
- Stop and test function
- Direct mounting onto block contactors
- 0.25 A at 125 VDC, 1.25 A at 24 VDC, 0.12 A at 250 VDC, 0.04 A at 250 VDC, 0.25 A at 60 VDC rated operational current DC-13
- 3 A at 120 VAC, 1.5 A at 120 VAC, 3A at 240 VAC, 1.5 A at 240 VAC, 1.9 A at 400 VAC, 1 A at 400 VAC, 1 A at 440 VAC, 1 A at 500 VAC rated operational current AC-15
- Mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC and 220 V DC. The contactors can also be used for many other applications such as bypass, capacitor switching, lighting, DC power circuits.
- RoHs, CSA, cUL, CE, GOST
