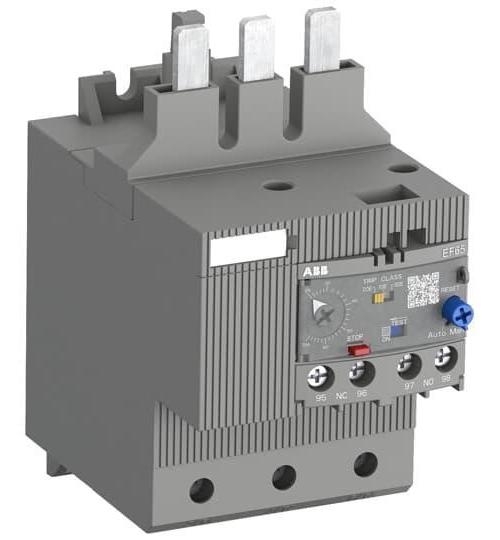

ABB EF65-70 EF65 Electronic Self-Supplied Thermal Overload Relay, 70 A, 1NO-1NC 1 Form A/1 Form B Contact
Sku #01361444225
MFG #EF65-70
Attributes
| Type: | Electronic Self-Supplied |
| Amperage Rating: | 70 A |
| Contact Form: | 1NO-1NC 1 Form A/1 Form B |
| Series: | EF65 |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 3 |
- Heavy Duty Industrial Applications
- RoHs, CSA, cUL, CE, GOST
- Easy to use like a thermal overload relay and compatible with standard motor applications, the electronic overload relay is convincing, above all, due to its wide setting range, high accuracy, high operational temperature range and the possibility to select a trip class (10E, 20E, 30E)
- Direct mounting onto block contactors
- Sealable operating elements
- Position 1 to 6 mounting
- 2000 m maximum operating altitude permissible
- 0.056 to 0.441 W power loss
- The temperature compensation, trip contact (NC), signal contact (no), automatic- or manual reset selectable, trip-free mechanism, stop and test function and a trip indication
- The overload relays are connected directly to the contactors overload protection - trip class 10E, 20E, 30E selectable, phase loss sensitivity
- Adjustable current setting for overload protection
- Suitable for three and single-phase application
- Status indication
- 690 VAC rated insulation voltage
