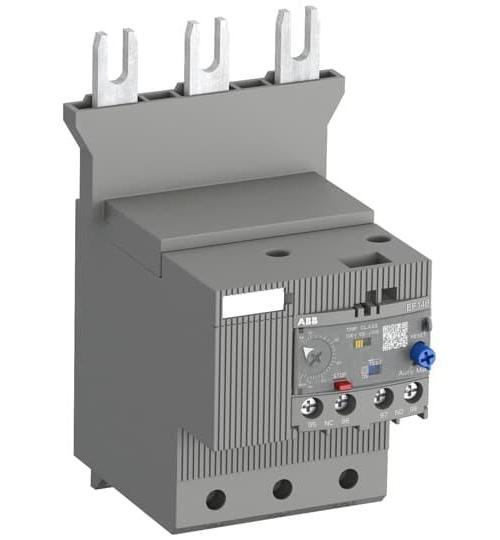

ABB EF146-150 Electronic Overload Relay, 54 to 150 A, 1NO-1NC 1 Form A/1 Form B Contact
Sku #01361444223
MFG #EF146-150
Attributes
| Series: | EF146 |
| Frequency Rating: | 50/60 Hz |
| Contact Rating: | 3 A at 240 V AC |
| Amperage Rating: | 54 to 150 A |
| Contact Form: | 1NO-1NC 1 Form A/1 Form B |
| Number of Poles: | 3 |
- Overload protection - trip class 10E, 20E, 30E selectable
- Phase loss sensitivity
- Adjustable current setting for overload protection
- Automatic or manual reset selectable
- Trip-free mechanism
- Status indication
- Stop and test function
- Direct mounting onto block contactors
- Sealable operating elements
- Self-supplied devices
- 0.55 A at 125 VDC, 1.5 A at 24 VDC, 0.27 A at 250 VDC, 0.55 A at 60 VDC rated operational current DC-13
- 3 A at 240 VAC, 1.1 A at 400 VAC, 0.75 A at 500 VAC rated operational current AC-15
- Mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC and 220 V DC. The contactors can also be used for many other applications such as bypass, capacitor switching, lighting, DC power circuits.
- RoHs, CSA, cUL, CE, GOST
