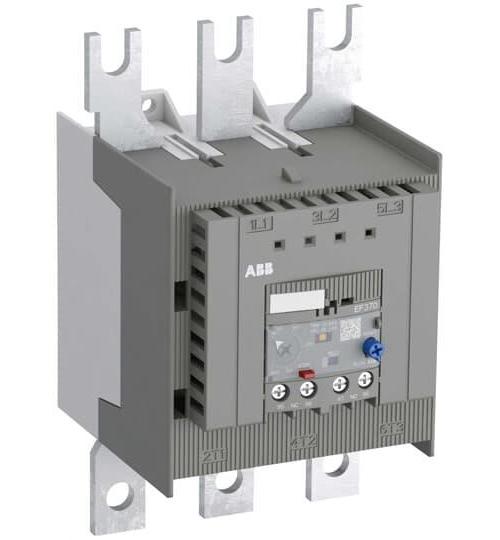

ABB EF370-380 EF370 Self-Supplied Electronic Overload Relay, 380 A, 1NO-1NC 1 Form A/1 Form B Contact, 600 V AC/DC, 1000 V AC V Coil
Sku #01361444221
MFG #EF370-380
Attributes
| Type: | Self-Supplied |
| Amperage Rating: | 380 A |
| Coil Voltage: | 600 V AC/DC, 1000 V AC |
| Series: | EF370 |
| Frequency Rating: | 50/60 Hz |
| Contact Form: | 1NO-1NC 1 Form A/1 Form B |
- RoHs, CSA, cUL, CE, GOST|RoHS Following EU Directive 2011/65/EU|IEC/EN 60947-1/IEC/EN 60947-4-1/IEC/EN 60947-5-1/UL 60947-1/UL 60947-4-1
- 1SAX611001R1101
- Heavy Duty Industrial Applications
- Sealable operating elements
- 6 kVAC auxiliary, 8 kVAC main rated impulse withstand voltage
- Trip-free mechanism
- 2000 m maximum operating altitude permissible
- Automatic or manual reset selectable
- Stop and test function
- Position 1 to 6 mounting
- Status indication
- Direct mounting onto block contactors
- Overload protection trip class 10E, 20E, 30E selectable
- Adjustable current setting for overload protection
- Electronic Overload Relay
- 1000 VAC rated insulation voltage
- Self-supplied devices
- 0.37 to 4.043 W power loss
- Phase loss sensitivity
- Temperature compensation from -25 to 70 deg C
