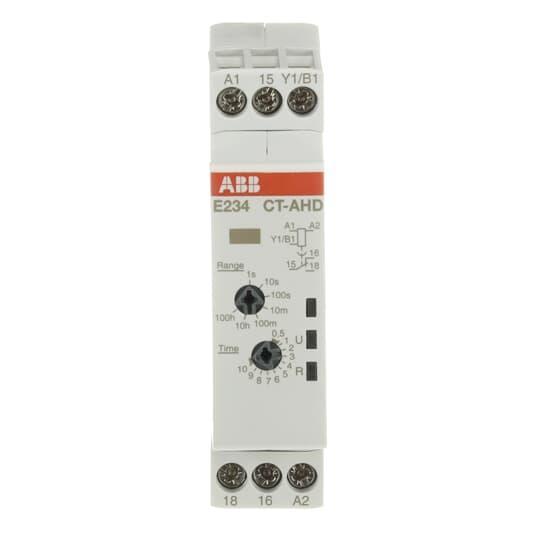

ABB 1SVR500110R0000 CT-D Electronic Timing Relay, 0.05 s to 100 hr Setting, 1CO 1 Form C SPDT Contact
Sku #01361435066
MFG #1SVR500110R0000
Attributes
| Type: | Electronic |
| Operation Mode: | Off-Delay |
| Time Setting: | 0.05 s to 100 hr |
| Series: | CT-D |
| Contact Form: | 1CO 1 Form C SPDT |
| Coil Voltage: | 24 to 240 V AC, 24 to 48 V DC |
- 2 LEDs for the indication of operational states
- 1 CO (SPDT) contact (250 VAC/6 A) output
- Light-gray enclosure in RAL 7035
- Screw terminal connection
- 7 time ranges (0.05 sec to 100 hr) in one device
- Single-function timer OFF-delay
- With their MDRC profile and a width of only 17.5 mm, the CT-D range timers are ideally suited for installation in distribution panels as well as for industrial applications where compact dimensions are required
- Control input voltage related triggering, polarized, capable of switching a parallel load
- For all domestic installation and distribution panels and the wide input range allows use in applications worldwide
- UL 508|CAN/CSA C22.2 No. 14, EAC, CCC, RMRS|CE Certified|RCM|cUL Listed|cUL Listed|UL 508|CAN/CSA C22.2 No. 14|EAC|CCC|RMRS|CE Certified|RCM Certified
