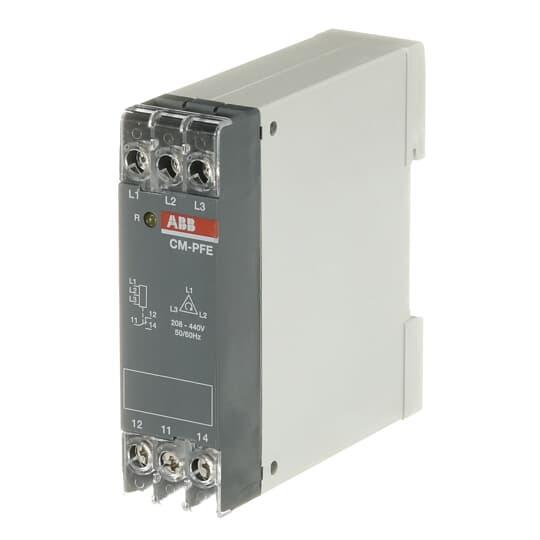

ABB 1SVR550824R9100 CM-E 3-Phase Monitoring Relay, 208 to 440 V AC, 13 mA, 1CO SPDT Contact, 208 to 440 V AC V Coil
Sku #01361434804
MFG #1SVR550824R9100
Attributes
| Type: | 3-Phase |
| Voltage Rating: | 208 to 440 V AC |
| Frequency Rating: | 50/60 Hz |
| Series: | CM-E |
| Amperage Rating: | 13 mA |
| Coil Voltage: | 208 to 440 V AC |
- LED's for the indication of operational states
- Phase sequence monitoring
- Suitable for railway applications
- Over and under voltage monitoring
- Dual frequency measuring 50/60 Hz
- Wide-range operating voltage guarantees world-wide operation
- Powered by the measuring circuit
- Adjustable phase unbalance threshold value
- 3 A at 230 VAC rated operational current AC-15
- Adjustable ON-delay/OFF-delay time
- Phase failure detection
- BAA Compliant|CE Certified|CB Certified|CCC Certified|cUL Listed|EAC Certified|RMRS Certified|UL Listed|CAN/CSA C22.2 No. 14|EN 50581|IEC/EN 60255-27, 61000-6-2, 61000-6-3|UL 508|CB Certified|CCC Certified|cULus 508 20120829-E140448|CE Certified|DNV GL Certified|EAC Certified|RMRS Approved
- For reliable and continuous monitoring of a 3-phase network which guarantees the trouble-free and economic operation of machines and installations
