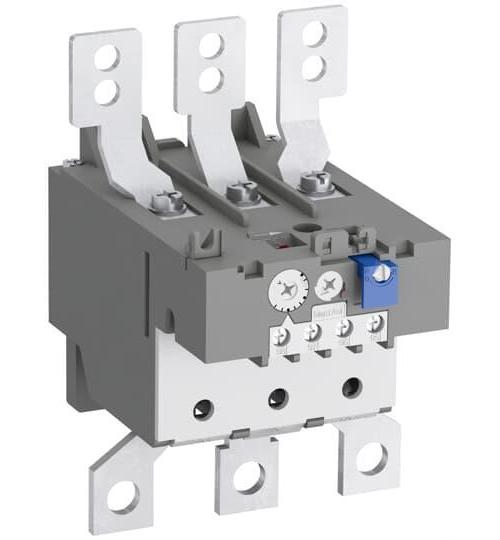

ABB TA200DU90 Economic Thermal Overload Relay, 66 to 90 A, 1NO-1NC 1 Form A/1 Form B Contact
Sku #01361428586
MFG #TA200DU90
Attributes
| Type: | Economic |
| Amperage Rating: | 66 to 90 A |
| Contact Form: | 1NO-1NC 1 Form A/1 Form B |
| Series: | TA200DU |
| Frequency Rating: | 50/60 Hz |
| Contact Rating: | 3 A at 120 V AC |
- Manual or automatic reset selectable
- Phase loss sensitivity acceleration to IEC/EN 60947-4-1
- TEST and STOP function - trip indication on the front
- Temperature compensation
- 0.25 A at 125 VDC, 1.25 A at 24 VDC, 0.12 A at 250 VDC, 0.04 A at 250 VDC, 0.25 A at 60 VDC rated operational current DC-13
- 3 A at 120 VAC, 1.5 A at 120 VAC, 3A at 240 VAC, 1.5 A at 240 VAC, 1.9 A at 400 VAC, 1 A at 400 VAC, 1 A at 440 VAC, 1 A at 500 VAC rated operational current AC-15
- RoHs, CSA, cUL, CE, GOST
- For single and three phase motors
