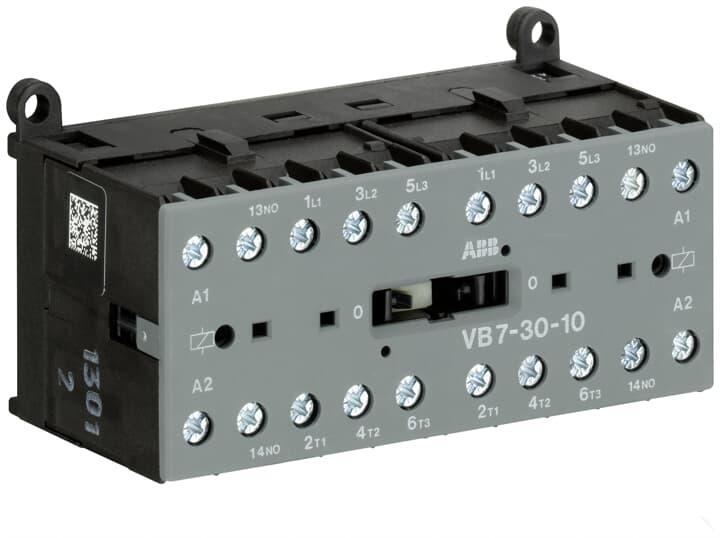

ABB VB7-30-10-01 VB7 Reversing Miniature Contactor, 24 V AC V Coil, 16 A, 3NO Contact, 3 Poles
Sku #01361418537
MFG #VB7-30-10-01
Attributes
| Type: | Reversing |
| Coil Voltage: | 24 V AC |
| Coil Power Rating: | 3 hp, 1-1/2 hp, 5 hp |
| Series: | VB7 |
| Maximum Load Current: | 16 A |
| Number of Poles: | 3 |
- Built-in mechanical interlock
- The coils must be mutually interlocked electrically and coils must be deenergised for 50 ms at least to prevent phase to phase short circuit on the arc
- Control circuit - AC operated
- Low coil consumption (3.5 VA at pull-in and at holding)
- Hum-free coil
- Add-on auxiliary contact blocks for front mounting
- 20 A at 220/240 V, 16 A at 220/240 V, 20 A at 380/440 V, 16 A at 380/440 V, 6 A at 690 V, 6 A at 690 V rated operational current AC-1
- 3 hp at 208 VAC 3 ph, 1.5 hp at 220 to 240 VAC 1 ph, 3 hp at 220 to 240 VAC 3 ph, 5 hp at 440 to 480 VAC 3 ph, 5 hp at 550 to 600 VAC 3 ph
- 3 kW at 220/230/240 V, 5.5 kW at 400 V, 5.5 kW at 440 V, 5.5 kW at 500 V, 3 kW at 690 V
- For residential buldings, commercial buildings and industrial applications for the control of 3 ph motor loads up to 5.5 kW (AC-3)
- RoHs, CSA, cUL, CE, GOST
