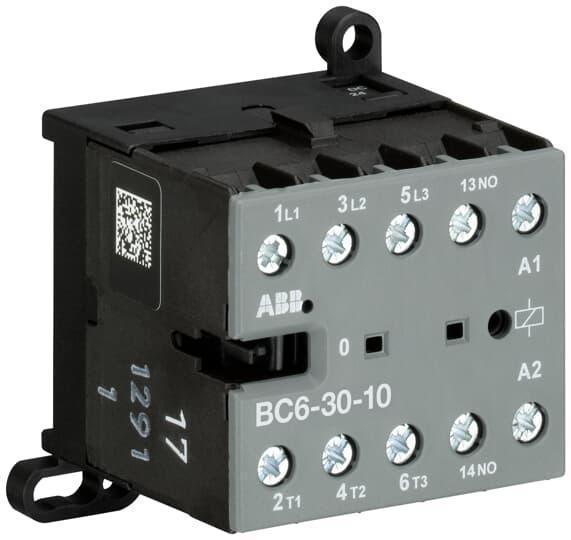

ABB BC6-30-10-01 BC6 Non-Reversing Miniature Contactor, 24 V AC V Coil, 16 A, 3NO Contact, 3 Poles
Sku #01361405288
MFG #BC6-30-10-01
Attributes
| Type: | Non-Reversing |
| Coil Voltage: | 24 V AC |
| Coil Power Rating: | 1 hp, 1/2 hp, 2 hp, 3 hp |
| Series: | BC6 |
| Maximum Load Current: | 16 A |
| Number of Poles: | 3 |
- For compact solutions up to 5 hp, 5.5 kW
- RoHs, CSA, cUL, CE, GOST
- Noiseless and hum-free coil
- Control circuit - DC operated, very low coil consumption
- Suitable for direct control by PLC outputs
- No auxiliary contact block permitted for mounting
- 20 A at 220/240 V, 16 A at 220/240 V, 20 A at 380/440 V, 16 A at 380/440 V, 6 A at 690 V, 6 A at 690 V rated operational current AC-1
- 1 hp at 208 VAC 3 ph, 0.5 hp at 220 to 240 VAC 1 ph, 2 hp at 220 to 240 VAC 3 ph, 3 hp at 440 to 480 VAC 3 ph, 1 hp at 550 to 600 VAC 3 ph
- 2.2 kW at 220/230/240 V, 4 kW at 400 V, 4 kW at 400 V 3 ph, 4 kW at 440 V, 4 kW at 500 V, 3 kW at 690 V
