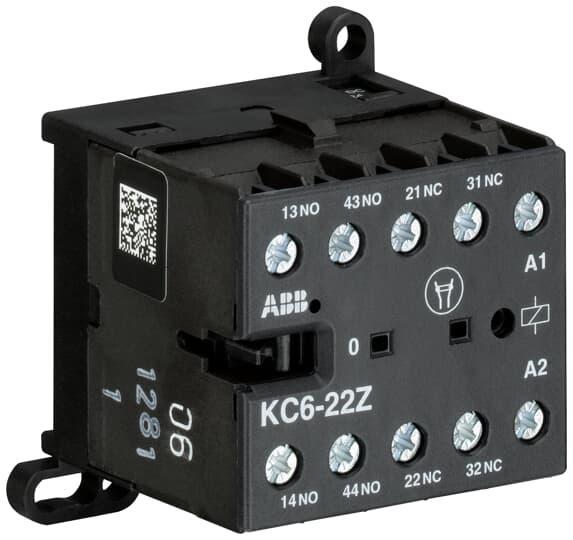

ABB KC6-22Z-01 Mini Contactor Relay, 5 A, 2NO-2NC 2 Form C Contact, 24 VDC V Coil
Sku #01361404964
MFG #KC6-22Z-01
Attributes
| Series: | KC6 |
| Coil Voltage: | 24 V DC |
| Contact Rating: | 4 A at 24 V AC |
| Amperage Rating: | 5 A |
| Contact Form: | 2NO-2NC 2 Form C |
| Number of Poles: | 4 |
- 4 poles with various contact combinations
- Control circuit - DC operated, low coil consumption (3.5 W at pull-in and at holding)
- Hum-free coil
- Add-on auxiliary contact blocks for front or side mounting
- 0.7 A At 110 VDC, 0.4 A at 220/240 VDC, 2.5 A at 24 VDC rated operational current DC-13
- 4 A at 120 VAC, 4 A at 220/240 VAC, 4 A at 240 VAC, 4 A at 24 VAC, 3 A at 380/400 VAC, 2 A at 500 VAC rated operational current AC-15
- 5 A at 600 VAC
- DC operated, low coil consumption control circuit (1.4 to 2.8 W at pull-in and at holding)
- Space optimized control products mainly used for control functions or for small loads up to 4 A
- BAA Compliant|CB Certified|CE Certified|CCC Certified|cUL Listed|EAC Certified|RMRS Certified|UL Listed
